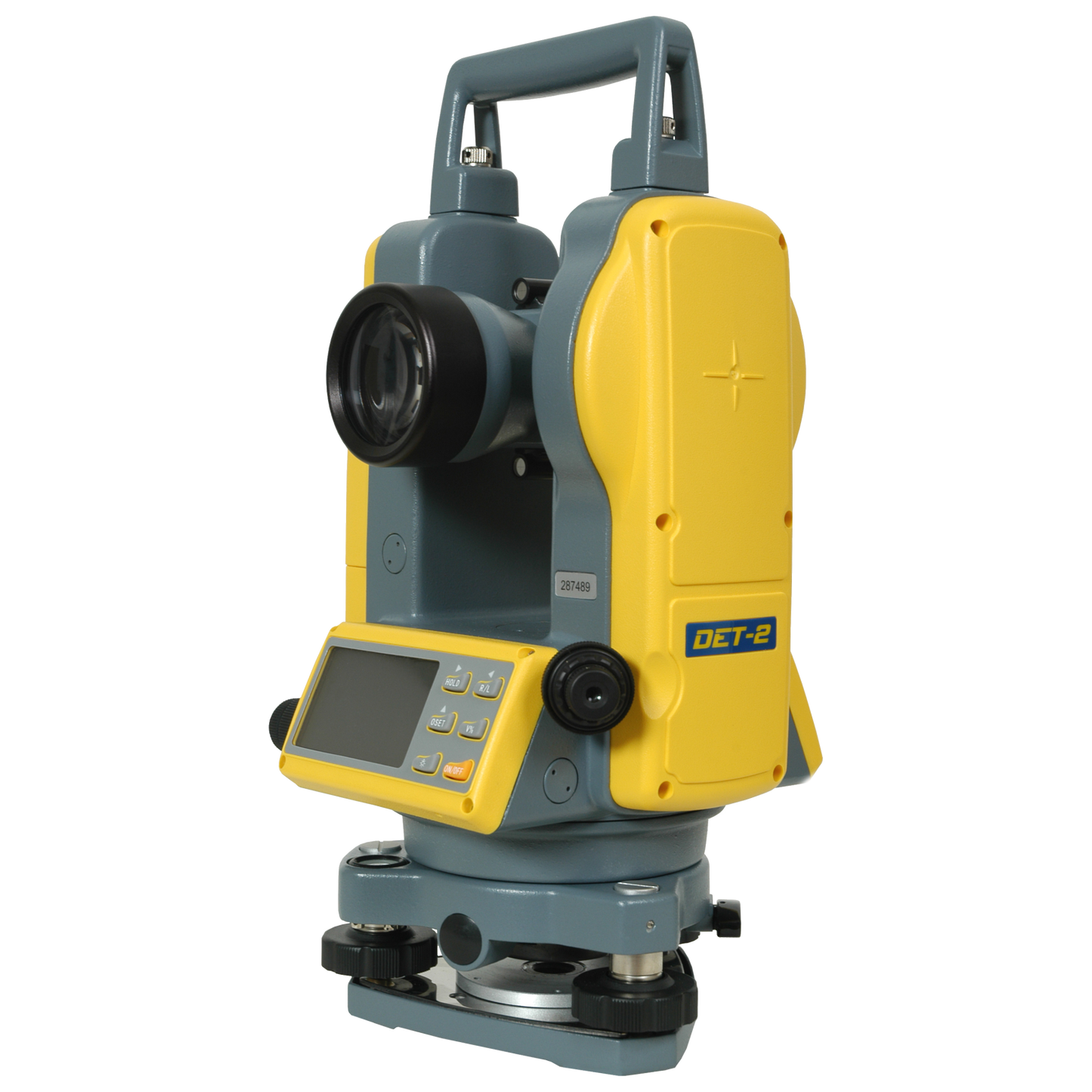

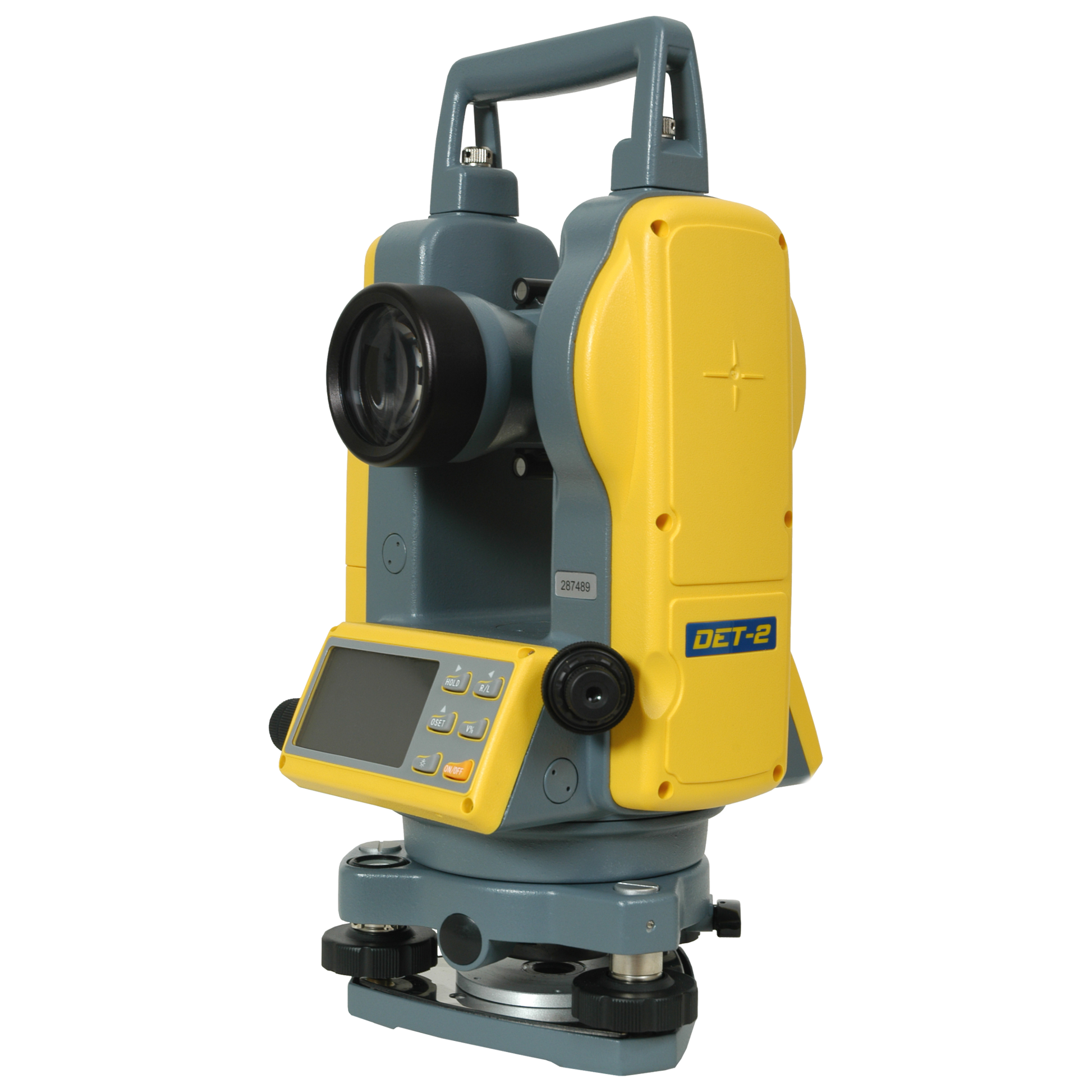

Theodolite SpectraPrecision DET-2, magnification 30x, double-sided LCD display

Spectra Precision® DET-2 – Electronic theodolite for versatile applications

Main features and functions

• precision and flexibility

  • 2" angle accuracy: Ideal for all types of construction projects, with individually adjustable display resolution for quick and convenient reading of values.
  • Vertical axis compensation: A tilt sensor ensures maximum accuracy and can be activated or deactivated as required.

• User-friendly design

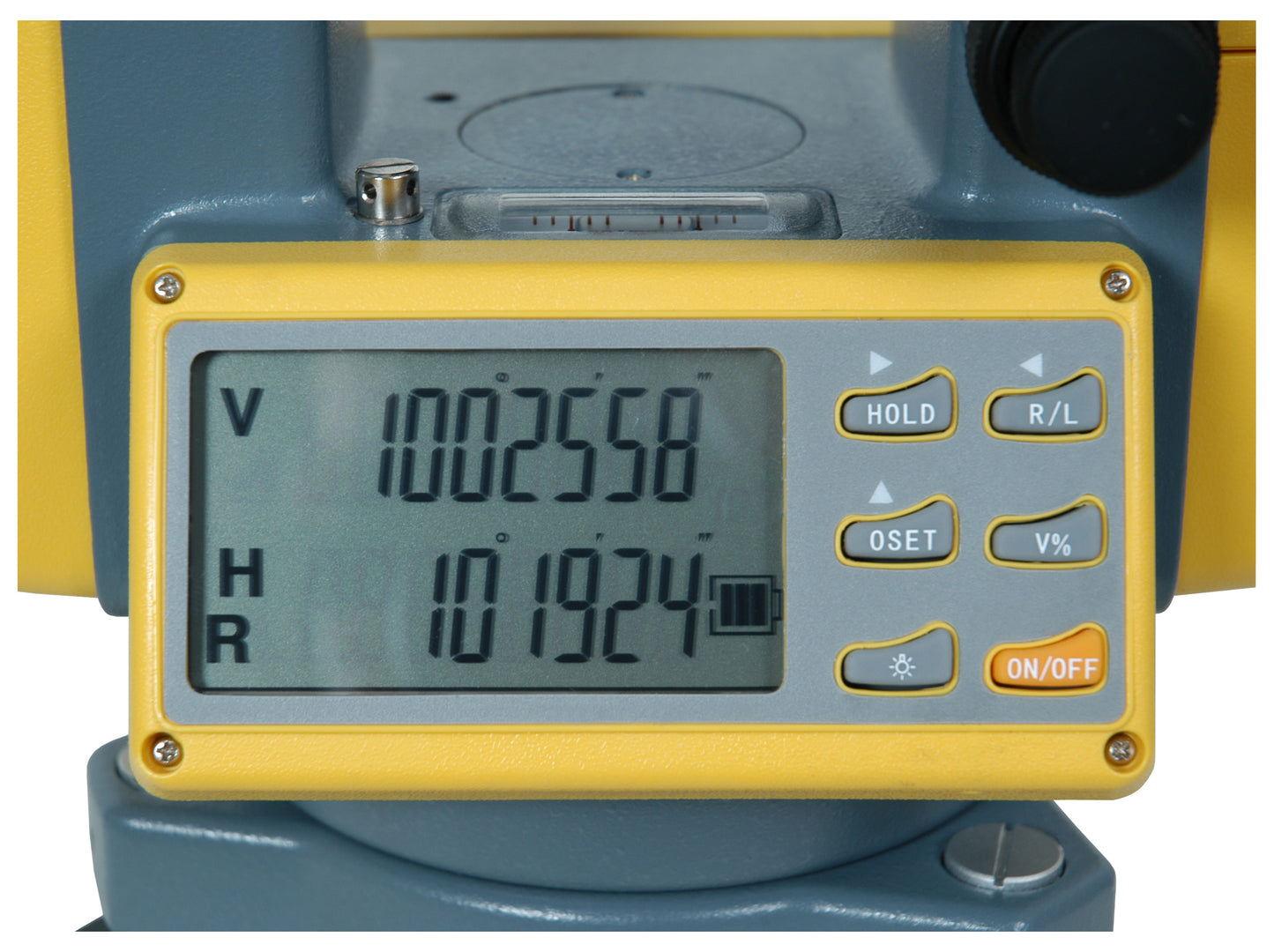

  • Double-sided LCD display: Large font makes it easier to read, minimizes errors and is easier on the eyes.
  • Integrated lighting: LCD display and crosshairs are illuminated, allowing you to work in low light conditions or at dusk.
  • Simple keypad: With only six buttons for quick setup and intuitive operation without much training.

• Versatile setting options

  • Programmable functions: Adjustments such as zero positioning of the vertical angle for different projects and users.
  • Unit selection: Units of measurement available in degrees, gons or mils.

• Additional functions for the construction site

  • 90° acoustic signal: Supports quick alignment and setting of right angles.
  • Conversion of vertical angles: Direct display of inclination values ​​in percent – ​​ideal for slope work or pipe laying.

• Efficient energy supply

  • NiMH battery with charger: Reduces operating costs thanks to rechargeable batteries.
  • Standard alkaline batteries: As backup for uninterrupted operation.
  • Battery level indicator: Prevents sudden interruptions and enables better work planning.
  • Automatic shutdown: Saves energy when

  • Features and Benefits

    • Excellent readability:

      • Large LCD display on both sides with easy-to-read characters.
      • Built-in backlighting for the display and crosshairs enables work even in poor lighting conditions or at dusk – activated with just the touch of a button.

    • User-friendliness:

      • Intuitive operation thanks to a simply designed keyboard with only six keys, which offers quick access to the most important functions.

    • High precision:

      • 2" angle accuracy and minimum reading of 1” or 5” .
      • Automatic compensation with a range of ±3' which can be deactivated if required.

    • Versatile applications:

      • Display angle values ​​in degrees, gons, mils or as percentage slope.
      • Acoustic signal at 90° angles for quick determination of right angles.
      • Direct conversion of vertical angles into percentage slopes, ideal for slope and pipe laying work.

    • Robust and durable:

      • Dust and splash-proof according to protection class IP54 .
      • Operation even at extreme temperatures from -20 °C to +50 °C .

  • ---

    Technical data

    • telescope:

      • Magnification: 30x , lens diameter: 45 mm
      • Focusing range: 1.35 m to ∞ , Field of view: 1°30'

    • angle measuring system:

      • Units: degrees, gon, mil, percent
      • Double-sided display with large, illuminated characters

    • Power supply:

      • NiMH battery with charger and optional alkaline batteries as reserve

    • Dimensions and weight:

      • Size: 164 x 154 x 340 mm
      • Weight: 4.5 kg

  • ---

    scope of delivery

    • DET-2 instrument
    • plumb bob, NiMH battery with charger
    • alkaline batteries, adjustment tool
    • rain cover
    • Multilingual user manual
    • Robust hard case with O-ring seal
