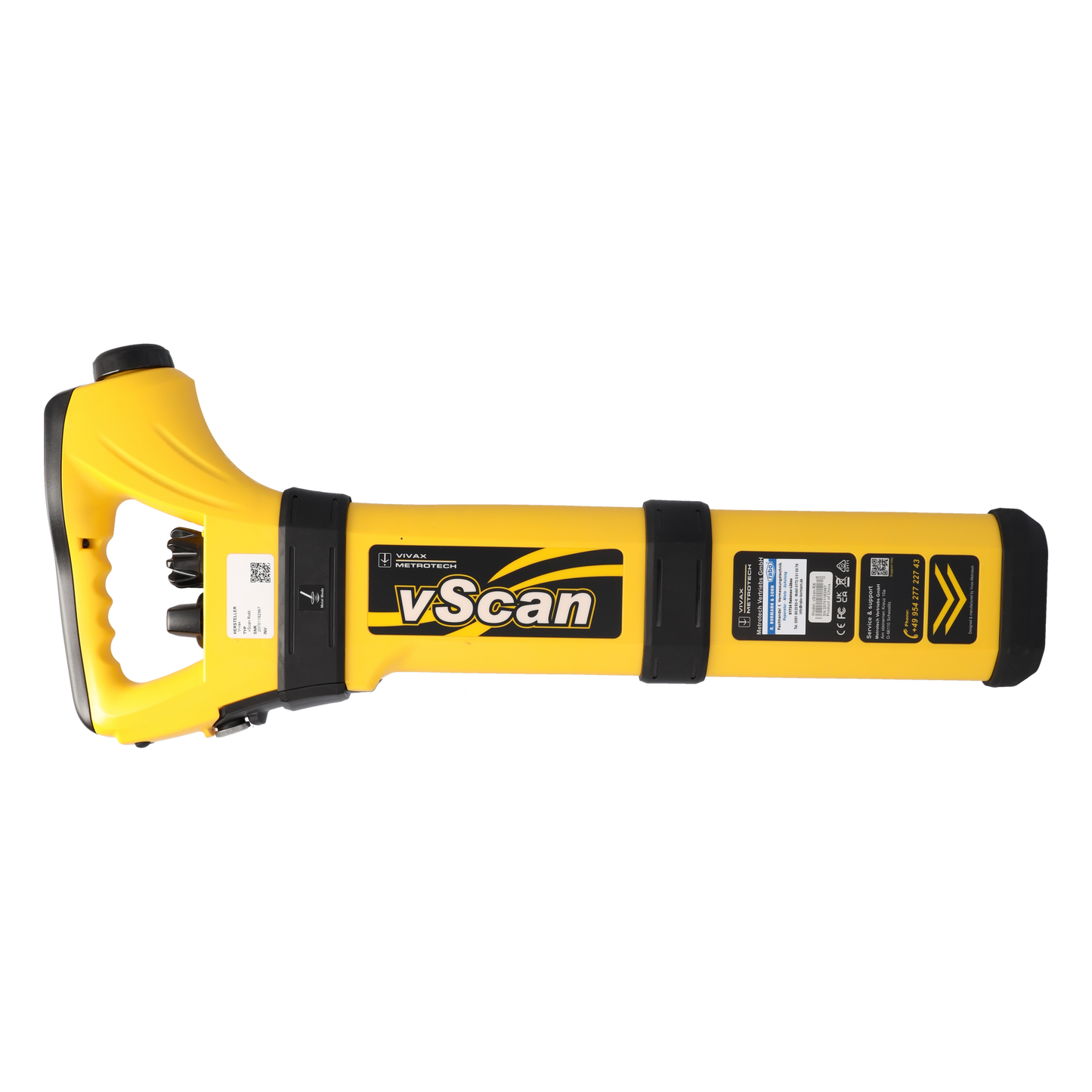

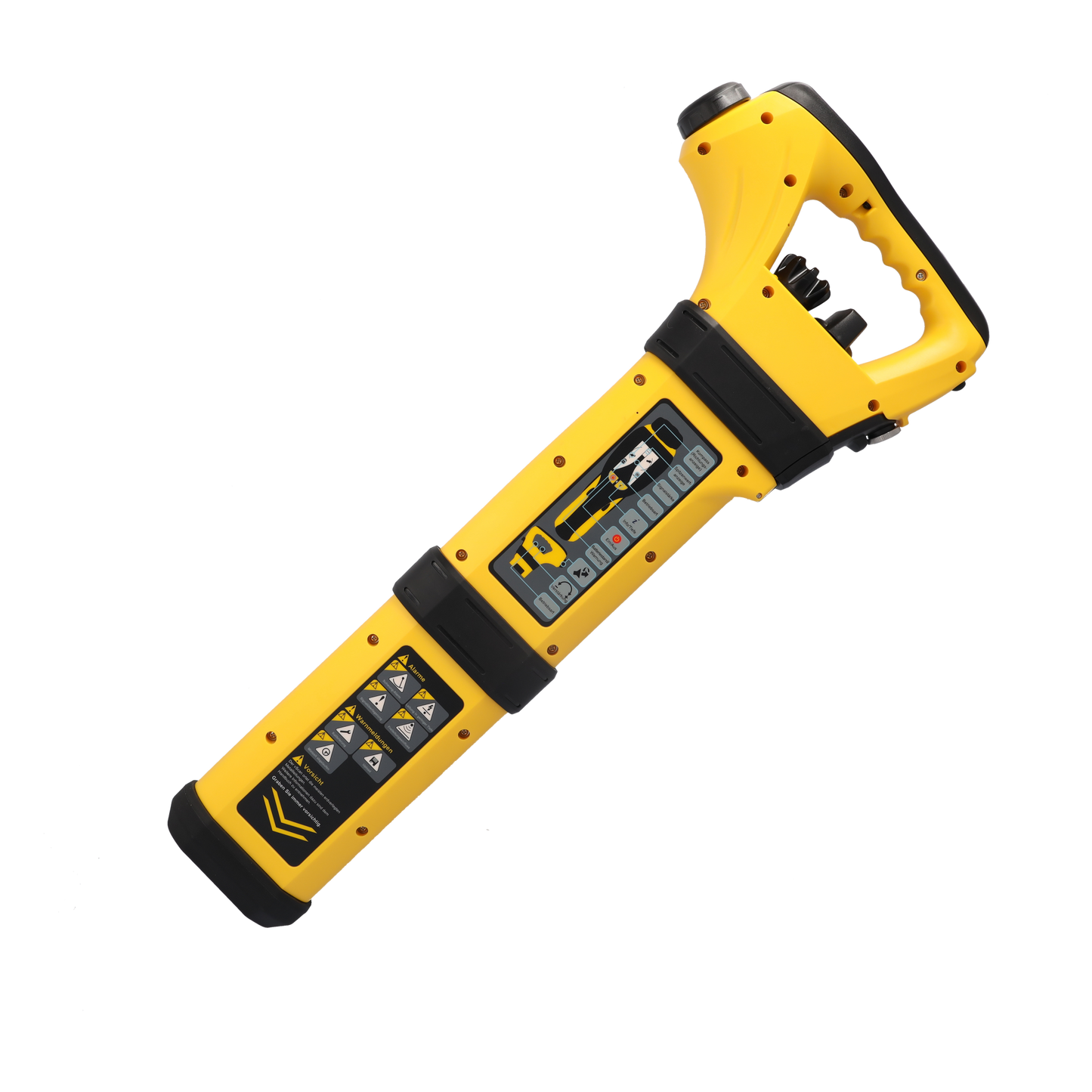

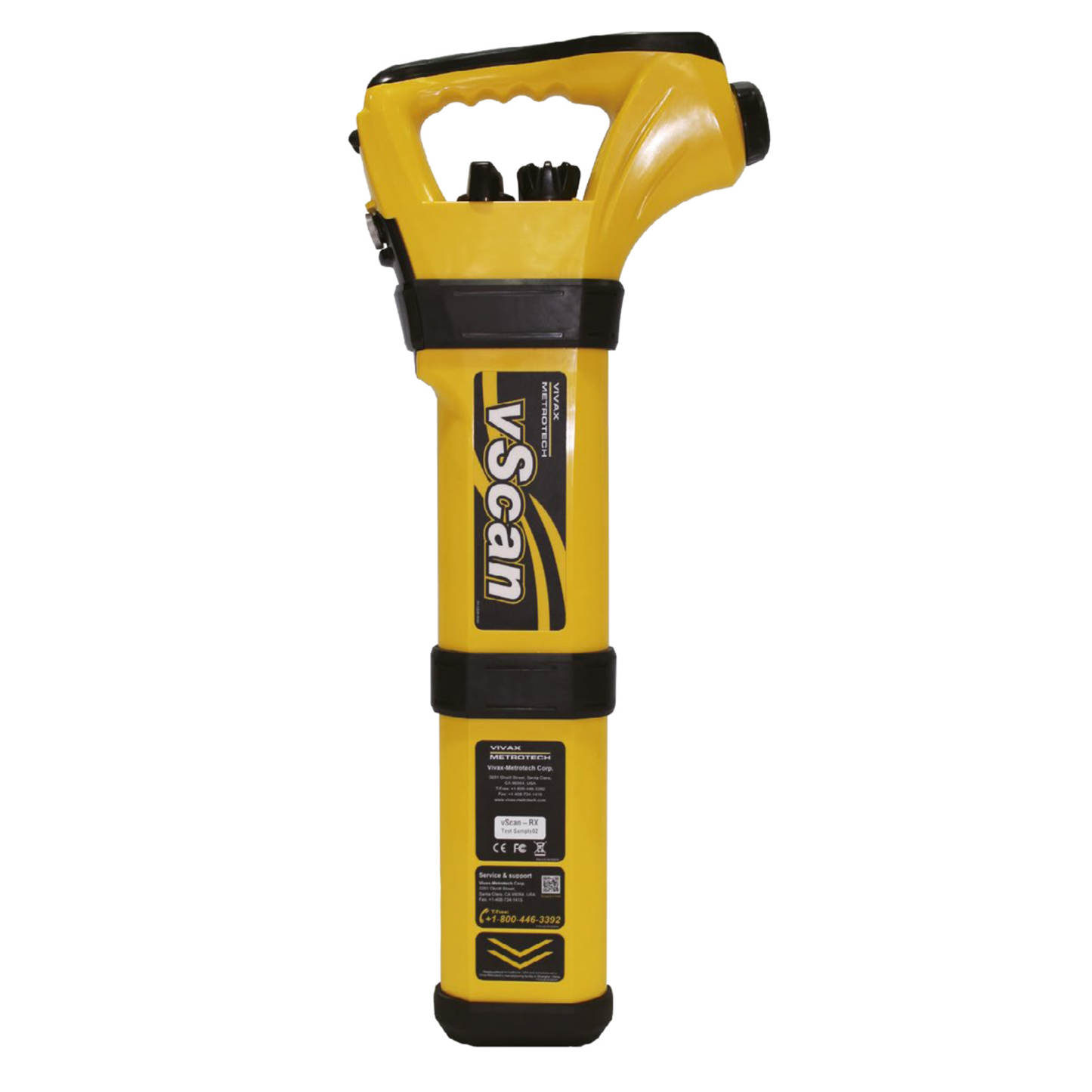

Cable locator with digital depth measurement vScan Receiver Rx Standard

The vivax vScan cable locator was developed for simple and cost-effective cable and object location. Thanks to its user-friendly operation and comprehensive frequency coverage, it is ideal for professional users and beginners alike.

Advantages of the vivax vScan cable locator

• Easy to use : No electronics expert required.
• Configurable : Customizable for specific requirements.
• Wide frequency support : active, passive and probe location.
• Cost-effective : Reduces costs and time required for locating work.

Technical data

• Power and radio mode for passive tracking
• 33 kHz and 131 kHz for active tracking
• 33 KHz special location
• Depth measurement passive 50Hz with direct depth indication
• depth and current measurement active
• Warnings/alarms acoustically, visually or via vibration alarm
• Integrated self-test / calibration check
• Automatic data logging
• including batteries, 2-year warranty

Optional accessories:

• Carrying Case for vScan Receiver Rx Standard
