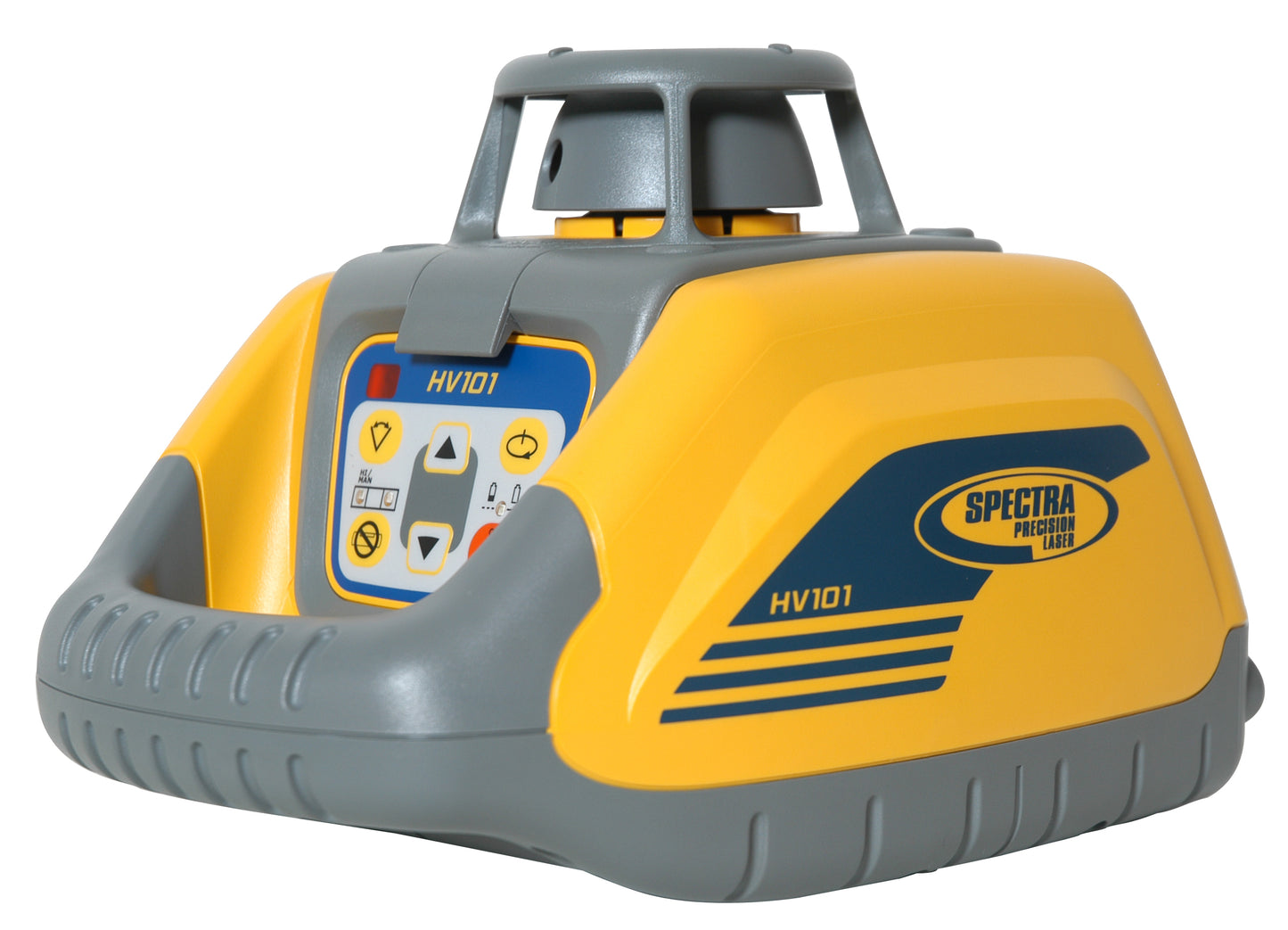

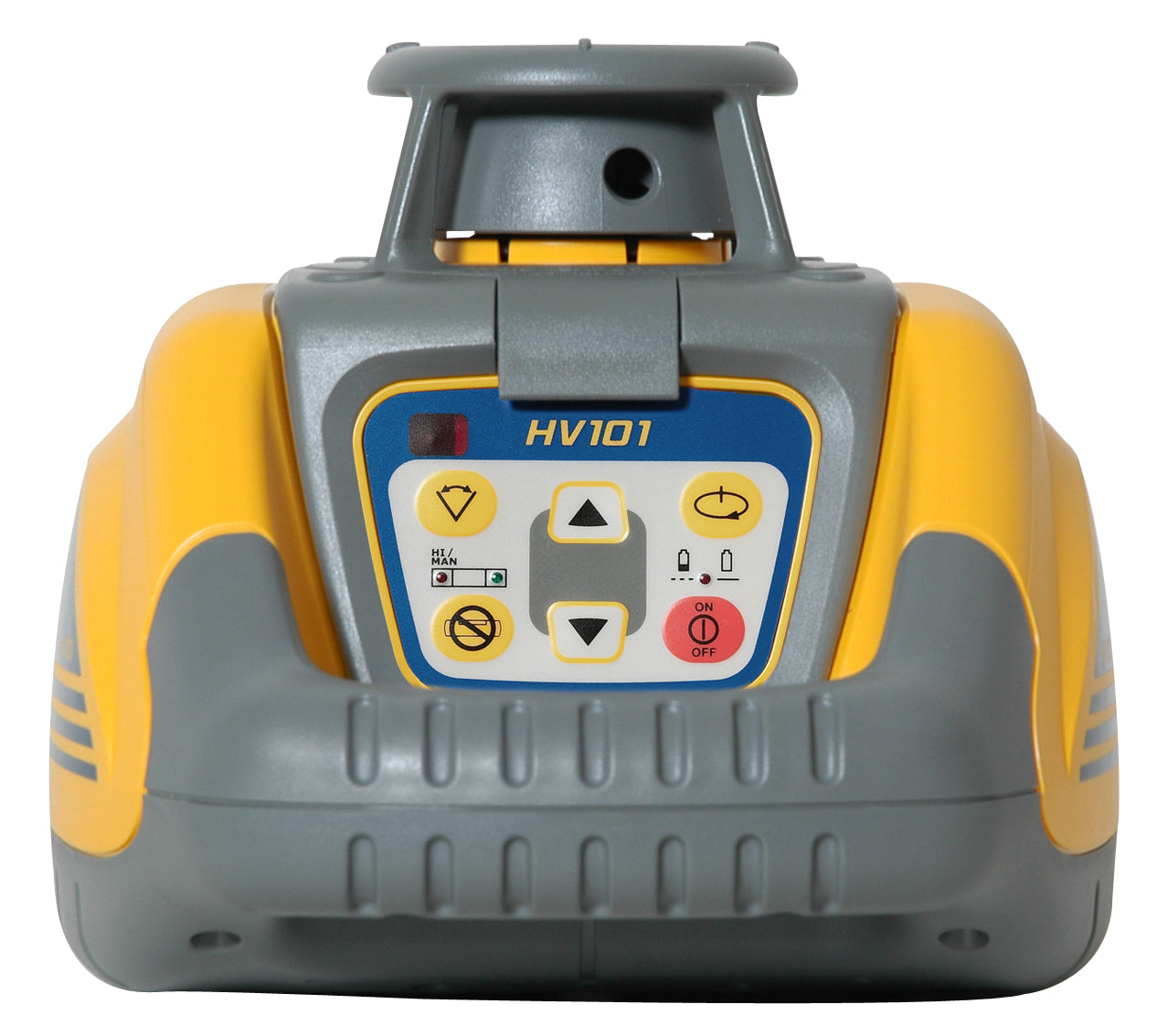

Spectra fully automatic horizontal/vertical laser SpectraPrecision HV101-4, incl. HR150U, IR remote control RC601

The Spectra Precision® Laser HV101 – Benefits for the User

The HV101 is a professional, economical and extremely versatile tool suitable for a wide range of horizontal, vertical and plumbing applications . It offers a clearly visible 360° laser reference plane and impresses with its robust construction and ease of use - ideal for interior work and general construction applications.

Advantages at a glance

• Versatility: Suitable for indoor and outdoor applications.
• Precision: Accuracy of ±3 mm at 30 m.
• Quick setup: Automatic electronic self-leveling.
• Easy to use: Intuitive one-button control and remote control for scan area, speed, tilt and orientation.
• Robustness: Construction site-proof and durable, withstands falls from a height of 1 m onto concrete.

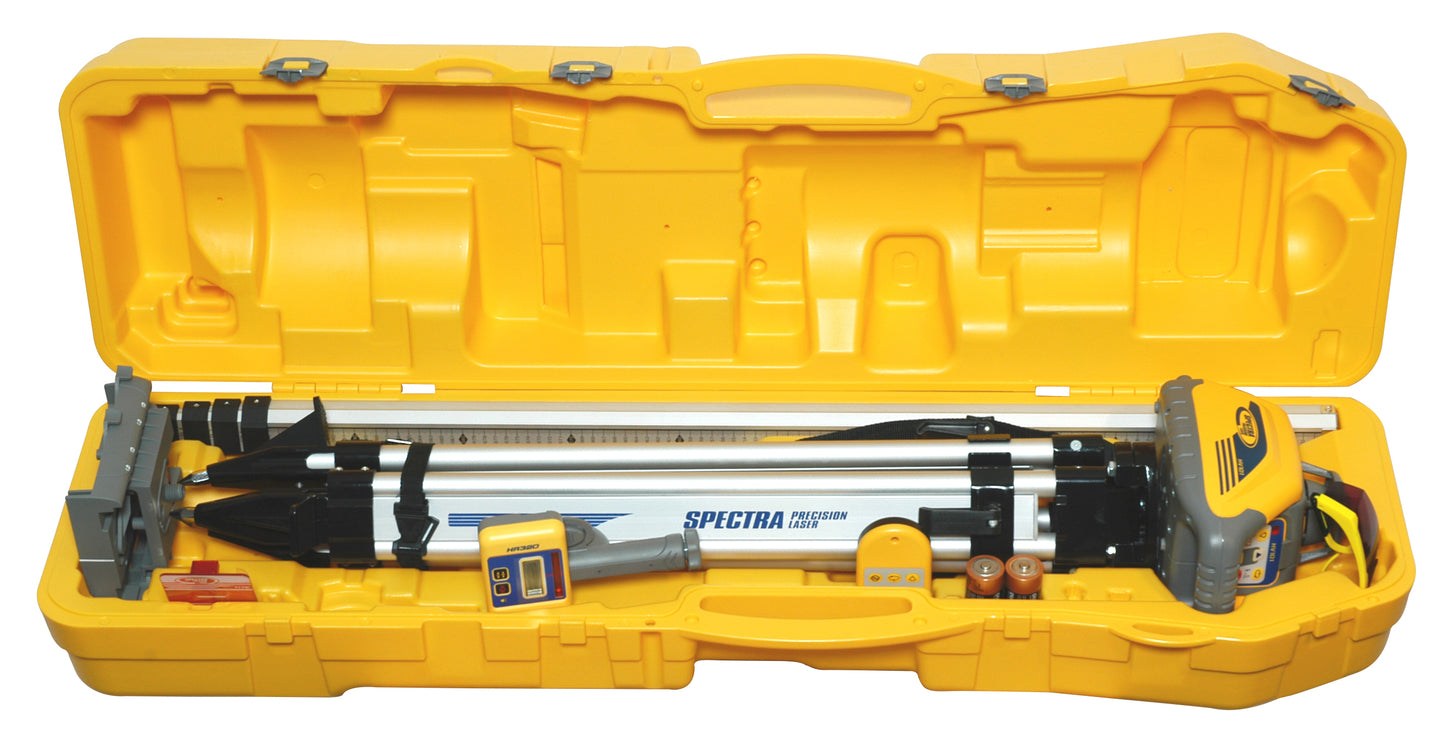

• Complete set: Available with tripod and measuring stick in a hard case.
• Reliability: 2-year warranty and water and dust resistant according to IP54.

Typical applications

Interior design:

• Installation of acoustic ceilings and drywalls.
• floor plan markings and angling.
• finishing works and renovations.

General construction:

• Residential construction and smaller commercial construction sites.
• Leveling, vertical alignment and plumbing.

Product Features HV101

• Automatic electronic self-leveling: ±5° range.
• Rotation speeds: 0, 50, 200, 600 rpm.
• Scan ranges: 3°, 8°, 45°, 90°, 180°.
• Operating time: Up to 50 hours with alkaline batteries.
• Laser class: <5 mW @ 635 nm, Class 3R.
• Temperature resistance: -5 °C to +45 °C (operation), -20 °C to +70 °C (storage).

Specifications HR320 receiver

• Two accuracies: Fine (2 mm) and Standard (6 mm).
• Dust and waterproof: IP67.
• Operating time: 70 hours.

A laser – versatile, robust and easy to use.
The HV101 is the perfect choice for precise and efficient work in interior finishing and general construction projects. Everything in one case, ready for the construction site
