rabo dry fill gauge 6-part | 2 base rails 1.25m and 2.50m | 2 adjustable leveling bars 0.77-1.20m and 1.50-2.50m | Varia-Plus Set

The rabo dry fill gauge set , developed by Dirk Bormann from Rabenau-Lübau near Dresden, stands for precision and efficiency in dry construction. Manufactured in Germany, this set is characterized by the highest quality, robustness and durability.

scope and equipment

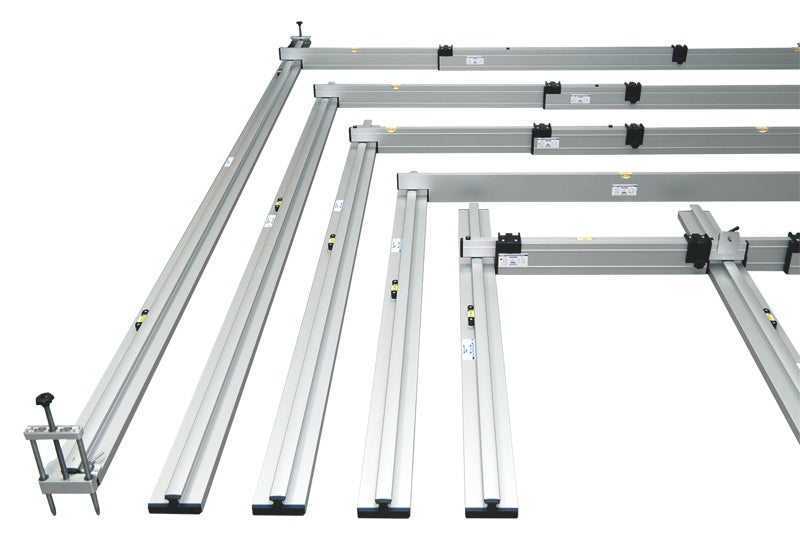

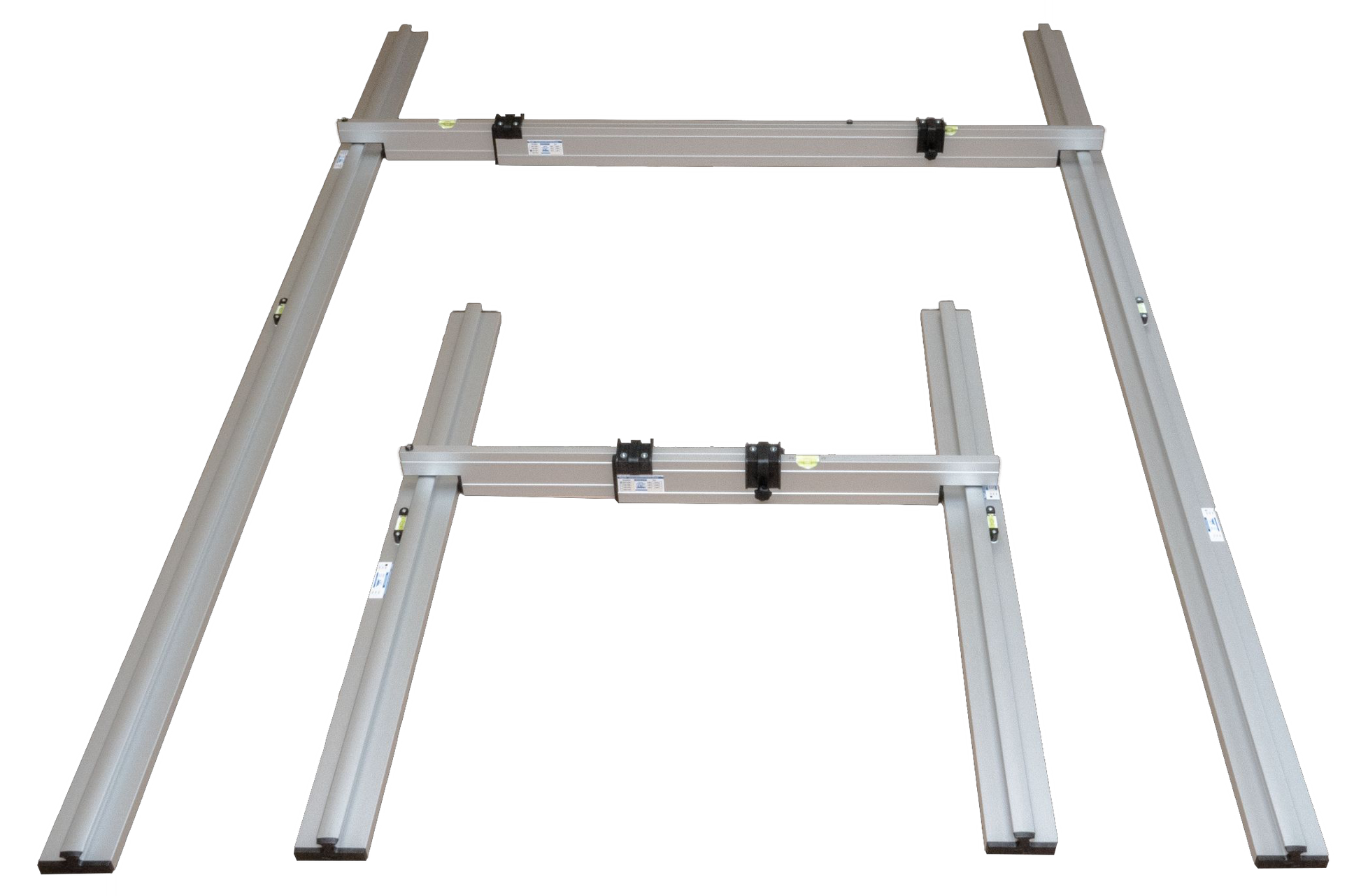

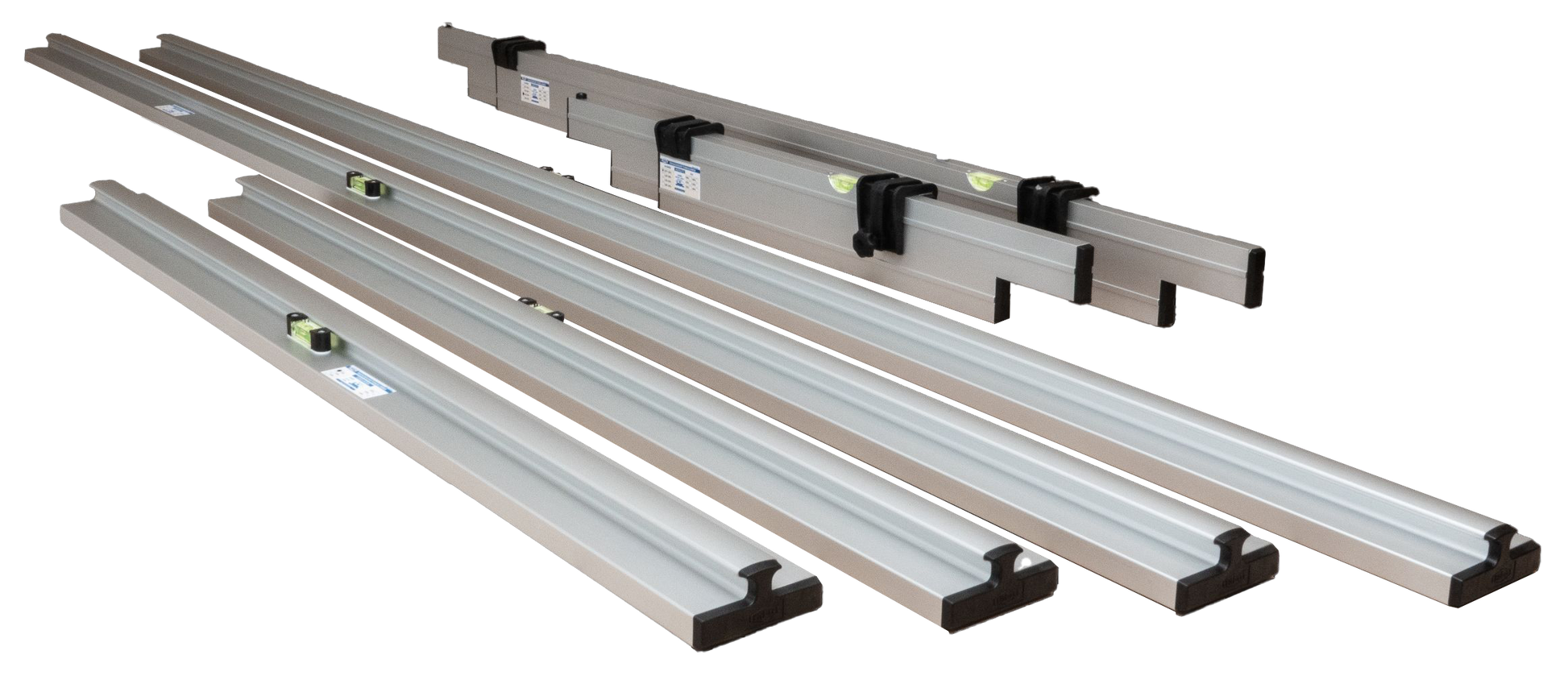

The Varia Plus set contains:

• Two base rails each 1.25 m long
• Two base rails each 2.50 m long
• Two adjustable screeds
• with a width of 0.77 to 1.20 m
• with a width of 1.50 to 2.50 m

All components consist of extremely stable aluminum multi-chamber hollow profile with a natural anodized surface. This protects against Corrosion and wear , which makes the set particularly durable and resistant.

Features and Benefits

The adjustable leveling bar can be easily adjusted to the desired working width. The interlocking profile rails are securely fixed using stable clamping elements. The base rails offer with their wide support surface of 100 mm a solid foundation and have ergonomic recessed grips that facilitate precise installation.

The adjustable horizontal spirit levels on rails and leveling strips. The leveling strips with a profile thickness of 100 x 20 mm are notched at the ends and equipped with plastic caps to prevent damage. Replaceable plastic sliders further increase the service life.

application and ergonomics

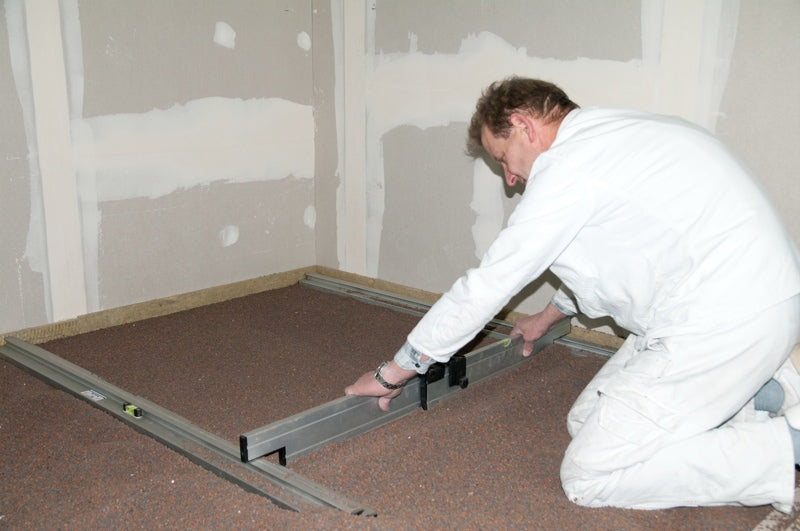

The adjustable screeds allow flexible adjustment, making work faster and more precise. Ergonomic details such as recessed grips and spirit levels ensure comfortable and precise handling.

Technical data

base rails:

• Number:
• 2 pieces of 1.25 m each
• 2 pieces of 2.50 m each
• Material: Extremely stable aluminum multi-chamber hollow profile
• Surface: Natural anodized, corrosion-resistant and durable
• contact surface: 100 x 44 mm
• Equipment:
  • Ergonomic grips for easy handling

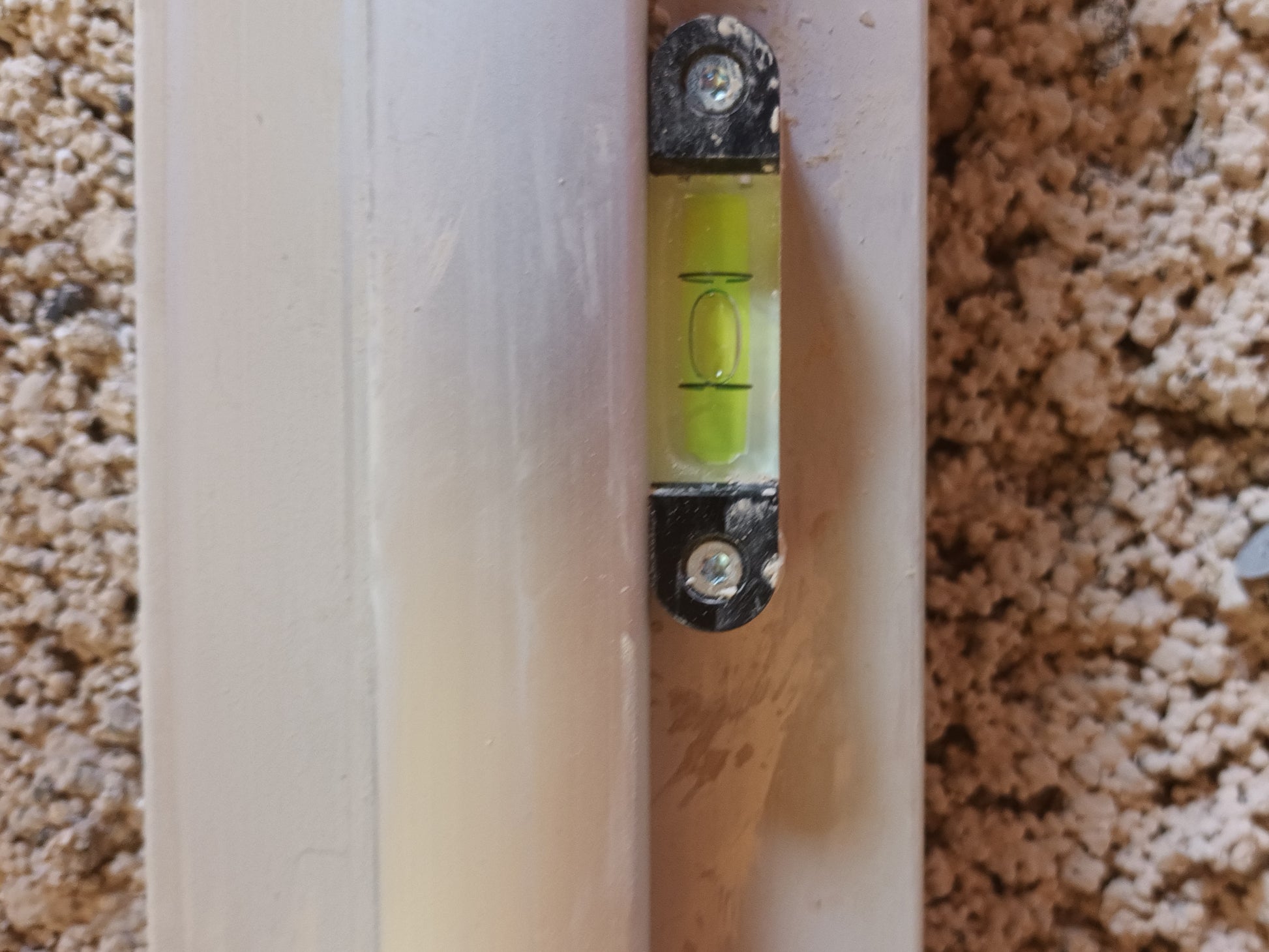

  • Adjustable horizontal spirit levels for precise alignment

screeds:

• Model: Continuously adjustable
• Width range:
• 0.77 m to 1.20 m
• 1.50 m to 2.50 m
• Material: Extremely stable aluminum multi-chamber hollow profile
• Surface: Natural anodized, corrosion-resistant and durable
• Mass: 100 x 20 mm
• Special features:
  • Notched ends with plastic caps for protection and precision
  • Replaceable plastic sliders for increased durability

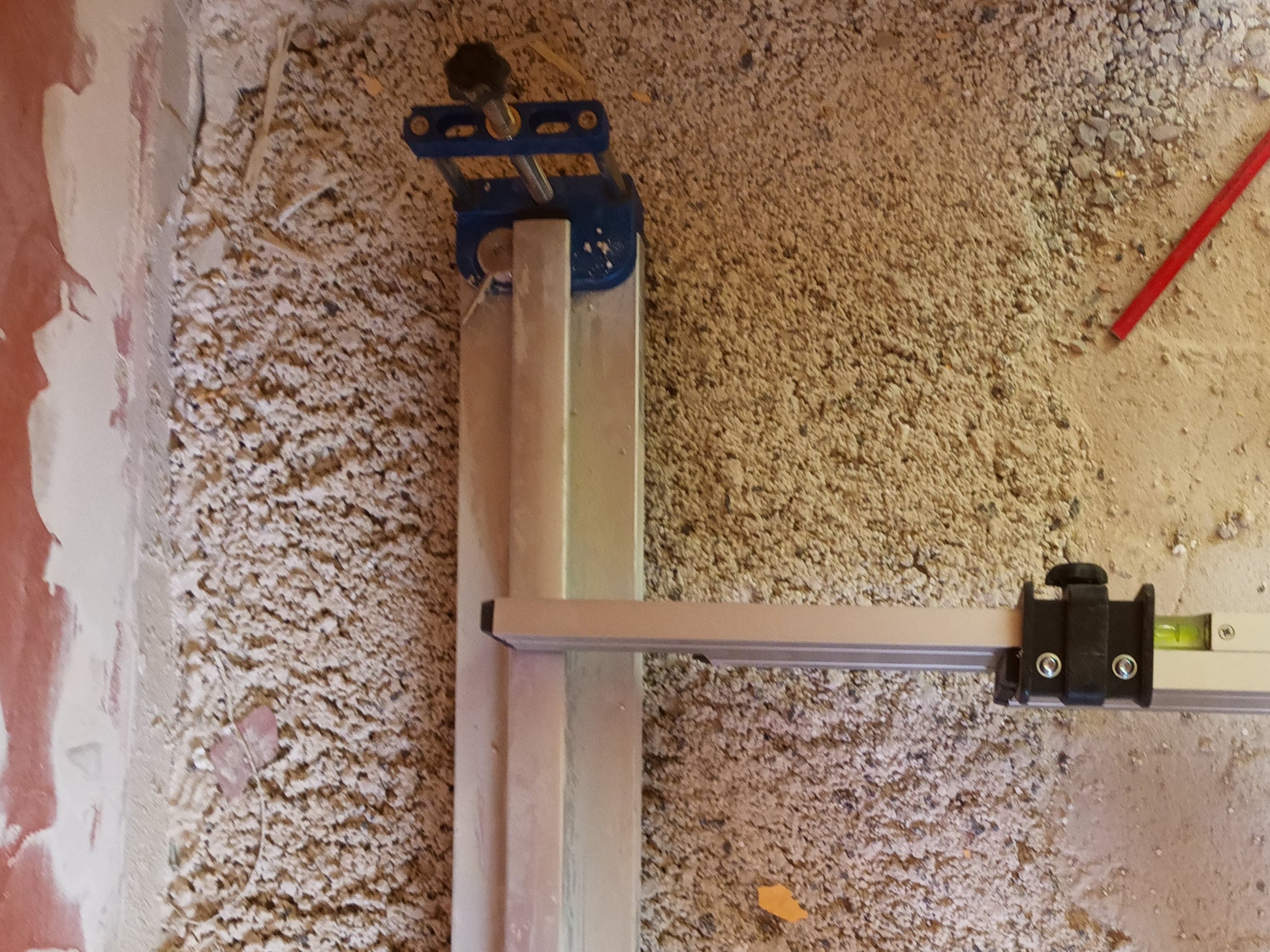

  • Fixation with 2 stable clamping elements
  • Optional accessories:
  • leveling block
    • Height adjustment: 0–10 cm
    • Perfect for precise alignment of the base rails on uneven surfaces
